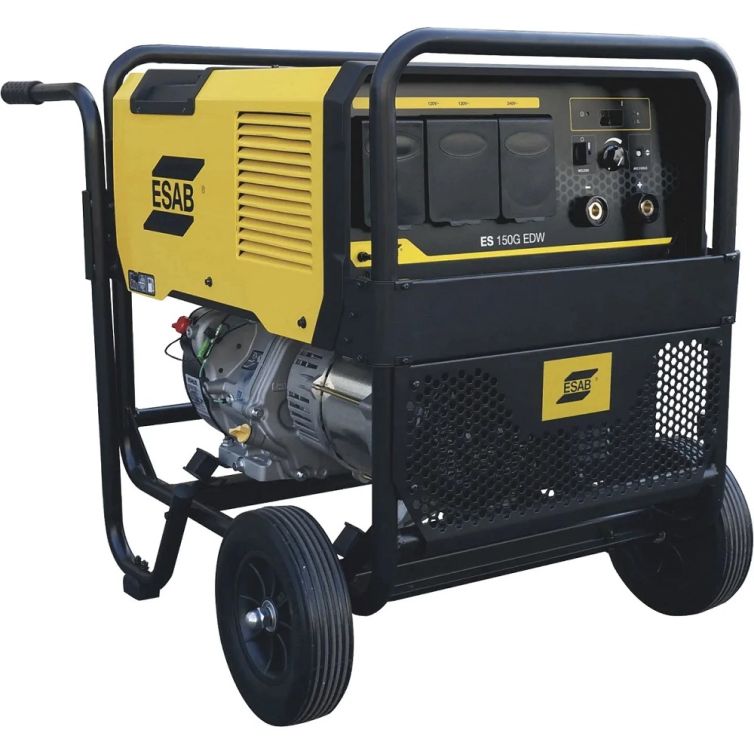

ESAB Ruffian ES 150G Engine Driven Welder

Lightweight, powerful, all-in-one DC Stick welding machine and AC generator combined.

As a welder, Ruffian uses inverter technology to provide up to 150 A of reliable welding power at 60% duty cycle in a very stable arc that helps avoid rework. As an AC generator, Ruffian uses a 14 HP Kohler engine to deliver up to 4.5 kW starting power. 120 VAC and 240 VAC outlets provide versatility to run lights, grinders, hand tools – even light-duty plasma cutters and MIG/TIG welders – and to use as emergency backup.

Ruffian ES 150G Features

• 150A Welding Output @ 60% Duty Cycle
• Running gear included with convenient lifting handles
• Exceptional performance with cellulosic electrodes (6010)
• Kohler Command PRO CH440 Engine, 5 gal. fuel tank
• 4x 120V, 20A outlets, and 1x 240V, 50A outlet for auxiliary power

Specifications

• Product Name // Part Number: ESAB Ruffian ES 150G EDW // 0707070150
• Welding Process Stick (SMAW)
• Rated Duty Cycle 150A, 26V @ 60%
• 115A, 24.6 @ 100%
• Welding Output Range 20A - 150A DC, 78V OCV
• Engine Type 14HP Kohler CH440, Gasoline
• Generator Power (Peak/Cont.) 4,500W Peak
• 4,000W Continuous
• Engine Start Type Pull start only
• Auxiliary Power Outlets 4x 120V 15/20A
• 1x 240V 50A
• Auxiliary Power (Max.) 120V: 34A
• 240V: 17A
• Dimensions L x W x H
  - Without Wheels and Handles: 28.70 x 22.52 x 25.98 in
  - With Wheels and Handles: 40.83 x 28.74 x 31.61 in
• Weight (Empty Weight, No Gas) - Without Wheels and Handles: 223.8 lb (101.5 kg)
  -With Wheels and Handles: 248.0 lb (112.5 kg)
