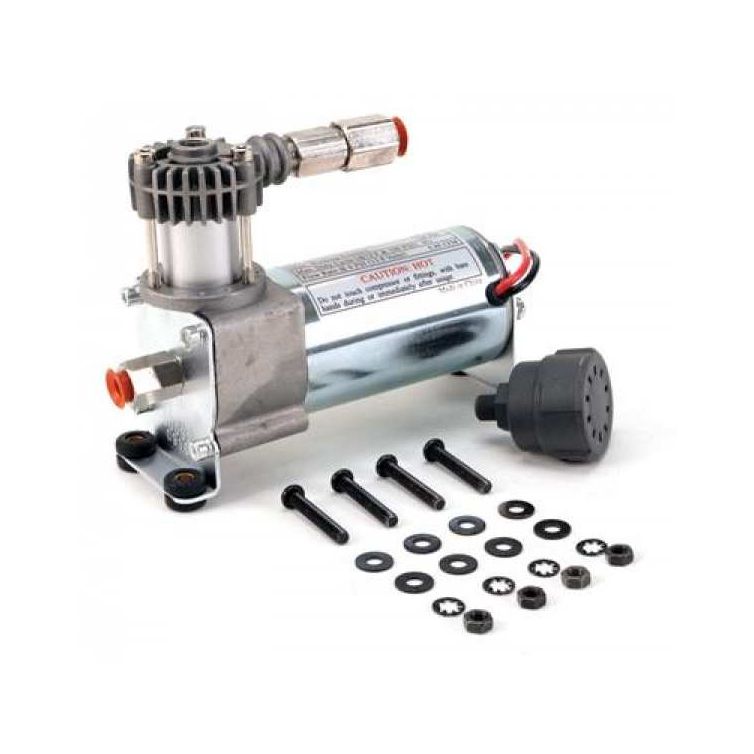

VIAIR’s 90 Series compressors offer a light duty solution for smaller air requirements and are designed to fill no larger than a 1.0 gallon air tank. Multiple duty cycles, mounting, compressor finish, and intake options are available depending on model.
Features
– Check Valve – Vibration Isolators – Mounting Hardware – Direct Mount Air Filter Assembly – Installation Instructions
Specifications
– 12-Volt – Permanent Magnetic Motor – Duty Cycle: 9% @ 100 PSI – Max. Working Pressure: 120 PSI – Max. Air Tank Size: 1.0 Gallon – Max. Amp Draw: 10-Amps – Ingress Protection Rating: IP54 – Max Ambient Temp: +158°F – Min Ambient Temp: -40°F – Dimensions: 7.6″L x 2.0″W x 4.6″H – Net Weight: 2.45lbs.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18ft. lbs.
