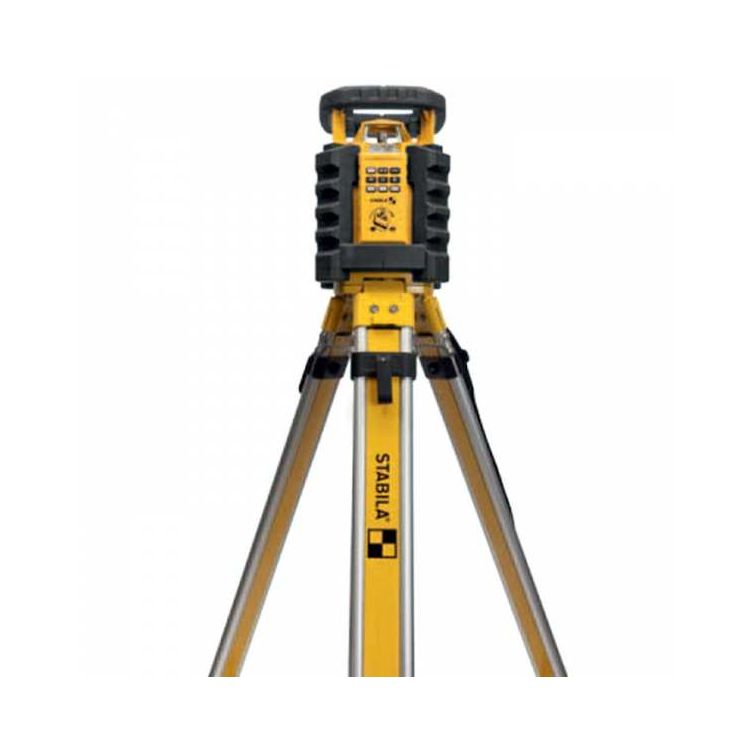

Stabila LAR 350 Rotary Laser Kit

MAP $2,390.00
In Stock Online
Super Special
SKU
STAB-05700TR
Model#: 05700
Check Other Stores
What is MAP Pricing?

When you see MAP, this means the manufacturer has instituted a Minimum Advertised Price, which is the lowest price we are permitted to advertise the product online. Please contact us to get a "KMS Tools Price" quote.

The new LAR 350 rotation laser incorporates many groundbreaking technologies. Its revolutionary features make every measuring task easier, quicker, more effective and even more reliable. The most important innovations for increasing your productivity:

MOTION CONTROL: An intuitive remote control with in-built movement sensor. By turning the remote control to the right or left, the movement sensor accelerates or decelerates the chosen laser function. This enables you to intuitively control numerous functions and settings at a measuring range of up to 60 ft.

LED ASSIST system: The LEDs integrated into the laser housing light up to indicate various functions. The system helps you to monitor the LAR 350 from a distance. This prevents you from having to constantly carry out checks at the site of the laser, saving you time in your day-to-day work.

MASKING MODE: The rotating laser beam can be limited to a particular area. This prevents the beam from interfering with other lasers causing them to malfunction, or visually disturb other professionals working on site. Multiple lasers can now work on di?erent tasks simultaneously and without hindrance.

  • The LAR 350 is one laser that does it all: horizontal, vertical, DUAL SLOPE, 90° squaring
  • Fully automatic motor-driven rotation laser for horizontal and vertical applications as well as manual inclination in two axes
  • Innovative MOTION CONTROL—quick, reliable and convenient laser operation by rotating the remote control
  • DUAL SLOPE inclination function—controlled inclination setting of up to 5° on two axes
  • SECTION MODE—working area which can be limited as required in rotation mode. The laser beam is only emitted in a defined area
  • LED ASSIST system—for easy operation and safety in the workplace. Integrated LEDs indicate, for example, which axis is currently tilted or is being tilted
  • MANUAL ALIGNMENT function—pivoting an axis in vertical operation
  • Patented STABILA PROTECTOR system—perfect protection, even when the laser is dropped from a tripod at a height of up to 5.9' (1.8 m)
  • Waterproof and dustproof in accordance with protection class IP 65
  • Large working area with REC 300 Digital set receiver, up to 2,624' (800 m) in diameter
  • Made in Germany
  • Specifications:
  • Laser class: 2
  • Output: < 1 mW
  • Laser wavelength: 635 nm
  • Self-levelling range: +/-5°
  • Inclination: : +/-5°
  • Levelling accuracy: +/- 1/8" at 100' (+/- 0.10 mm/m)
  • Measuring range: 60' (18.3 m)
  • Diameter of working area for set receiver: 2,600' (800 m)
  • Operating life: 80 hours
  • Battery type: D
  • Protection class: IP 65
  • Tripod connection: 5/8"
  • Click PDF icon to download feature / spec sheet STAB-05700
  • Includes:
  • LAR 350 Laser
  • REC 300 Receiver
  • RC-LAR 350 remote control
  • 90° angle bracket
  • Tripod
  • Grade rod reciever bracket
  • Laser glasses
  • Target plate
  • (2) D batteries
  • (4) AA batteries
  • Quick start manual
  • Full user manual
  • Carrying case
