Miller

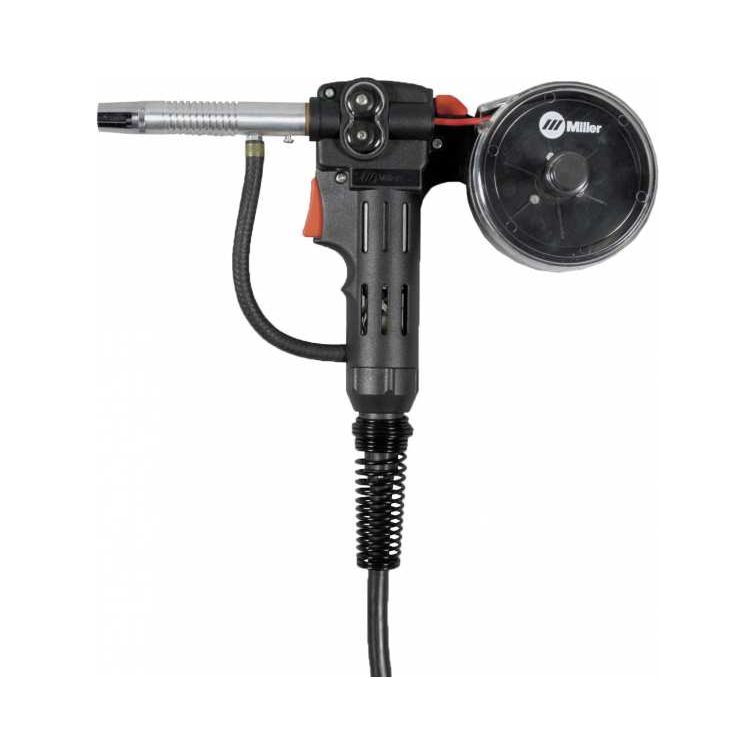

Miller Spoolmate 100 Air-Cooled Pistol-Grip Spool Gun
Reg. $899.99 Special Price $869.99
In Stock Online
SKU
MEM-300371
Model#: 300371
Details
Reliable and economical. This spool gun is equipped with a direct connect cable that allows for easy change over and set-up on aluminum, recessed contact tip for easier welding and prevention of burn back issues, dual V-knurled drive rolls for consistent feeding, adjustable pressure lever for easy unloading and loading of wire, adjustable drive roll tension for feeding different types of wire, heavy-duty cast-aluminum gearbox and drive motor, and a 12' cable with heavy-duty strain relief to protect against kinking.
The Spoolmate 100 is designed for home hobbyist and light fabricators. It's quick and easy to hook up to all current Miller welders such as the 140 (MEM-907335), 180 (MEM-907627), 200 (MEM-907518) and 211 (MEM-907422).
- Light Industrial Gun—For use with 4043 Series aluminum wire rated at 135 amps at 30 percent duty cycle.
- Dual V-knurled Drive Rolls with Adjustable Tension—Provides consistent fedding of different types of wire.
- 12-foot Direct Connect Cable—Heavy-duty strain relief provides extended reach and accessibility to your work.
- Clear Spool Canister—Protects the wire and allows you to easily see the spool.
- Specifications:
- Welding output: 135 amps @ 30% duty cycle
- Maximum wire speed: 5-625 inches per min
- Wire size: 0.030" to 0.035" aluminum wire / 0.023" to 0.035" steel and stainless steel wire
- Cable length: 12'
- Maximum spool size: 4" (102 mm)
- Gun length: 13"
- Gun width: 3"
- Gun height: 11.5"
- Assembly weight: 6 lbs (2.7 kg)
- Includes Spoolmate 100 spool gun, 12' (3.7 m) direct-connect cable, custom carrying case, extra contact tips and nozzle
- Click PDF icon to download feature / spec sheet
