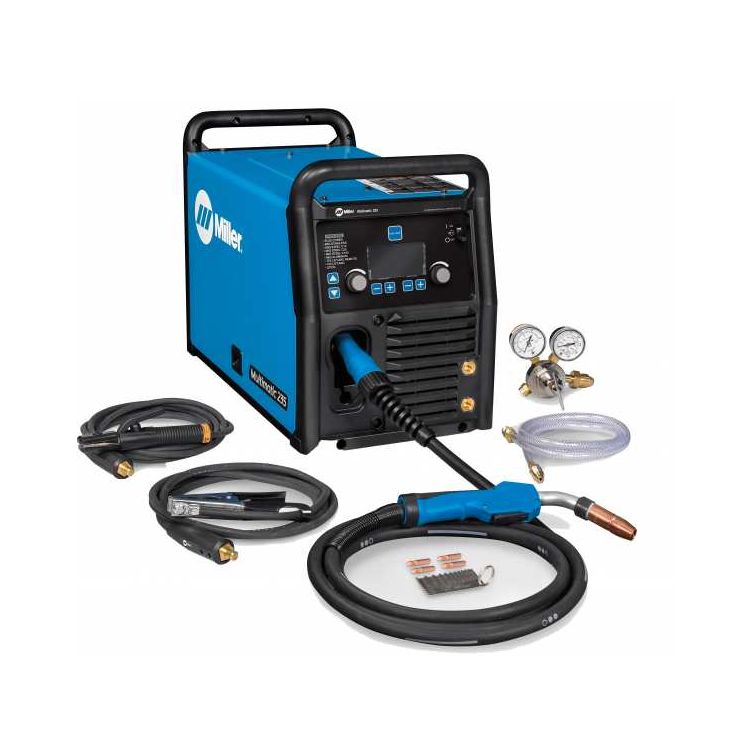

Miller Multimatic 235 Welder

Built for professionals in the manufacturing/fabrication, MRO and construction fabrication and education segments, the Multimatic 235 allows welders of all skill levels to be more efficient for all their MIG, flux-cored, stick and DC TIG welding needs. Setup is quick and easy, letting operators have faster uptime and weld with confidence.

KMS 5 Star Advantage Plan: We add one FREE extra year of warranty to every qualifying tool or machine purchased at KMS.

• Capable of MIG, flux-cored, DC stick and DC TIG processes, allowing you to build your skills
• Colour LCD with Auto-Set Elite adjusts machine to suit multiple materials and multiple processes with the ability to fine-tune your settings
• Inverter technology combines best-in-class arc characteristics, extremely forgiving to variations in arc length and travel speeds
• Two shielding gas connections on the back of the machine—one for MIG and one for TIG so both gases can be left connected to the machine
• Auto Spool Gun Detect automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch.
• Large wire drive compartment houses 12" wire spools, reducing frequency of changing to smaller spools
• Heavy duty aluminum two-drive roll system improves wire feeding
• Robust, angled wire drive with Quick Select drive roll, which offers three grooves—two for different size solid wire and a third for flux-cored wire
• Smooth-Start provides smooth, spatter-free MIG starts
• Easy-to-understand interface with 4.3 inch color LCD display and intuitive connection setup images

Specifications:

• Processes: Flux Cored (FCAW), TIG DC (GTAW-DC),MIG (GMAW), Stick (SMAW)
• MIG welds 24 ga. to 3/8" mild steel
• MIG welds 18 ga. to 1/4" aluminum (with optional spoolgun MEM-300371 or MEM-301272)
• Lift Arc TIG welds 24 ga. to 1/4" steel (with optional TIG kit MEM-301518)
• DC Stick welds 16 ga. to 3/8" steel
• Input Power:120V / 240V, 50/60 Hz, single phase
• Wire Speed: 60-600 IPM (1.5-15.2 m/min)
• Machine Net Weight: 63
• Miller True Blue Warranty

Includes:

• Power source
• 15' 250-amp MDX 250 MIG gun with Bernard Acculock MDX consummables for 0.030/0.35" wire
• 10' cable with electrode holder and 50mm dinse-style connector
• Flow gauge regulator and gas hose for argon or AR/CO² mix
• 0.030/0.035 reversible drive rolls
• Extra contact tips
• Material thickness gauge
• Click PDF icon to download feature / spec sheet
