Miller Multimatic 220 Welder
$5,963.00
In Stock Online
SKU
MEM-907757
Model#: 907757
Details
Ideal for hobbyists and small shops, the Multimatic 220 AC/DC gives you the freedom to weld any process—MIG, flux-cored, stick, and AC/DC TIG—with one portable, powerful, easy-to-use machine. Setup and switching processes are fast and easy, all while ensuring excellent arc quality using either 120- or 240-volt power.
- The Multimatic 220 AC/DC comes equipped with all accessories to weld any process, unlike other machines where you need to purchase additional accessories
- With Miller's innovative QuickTech technology, setup and changing processes is even easier. Automatically determines the polarity. Work is always connected to the bottom right receptacle. MIG gun and TIG torch can stay connected at the same time.
- Automatically switches to the right process. Just hit the trigger or the foot control and the machine automatically changes, eliminating the need to manually change processes.
- Automatically recalls the settings from the last process used.
- Pro-Set (TIG and stick manual modes) eliminates the guesswork when setting weld parameters. Simply adjust control until Pro-Set appears on the display and the number turns blue.
- Auto-Set Elite fast and easy predefined settings for multiple materials and processes to help you get welding quickly. Available for all processes (MIG, stick, AC TIG, DC TIG) with the ability to fine-tune your settings.
- Robust, angled wire drive with Quick Select drive roll for easily changing one wire type/diameter to another. Quick Select drive roll offers three grooves — two for different size solid wires and a third for flux-cored wire.
- Two shielding gas connections so both gases can be left connected to the machine, no switching needed. One connection for MIG gas and one for TIG gas.
- Easy-to-understand interface with 3.5-inch color LCD display and intuitive connection setup images.
- Weighing only 56 pounds, the Multimatic 220 AC/DC can go where the work is, plus the added convenience of one machine versus two or more.
- Operates on 120-volt or 240-volt power letting you work virtually anywhere. Multi-voltage plug (MVP) easily connects to common 120-volt or 240-volt power outlets — no tools required. Choose the plug that fits the receptacle and connect it to the power cord
- 14-pin controlled operator alternatives. The standard 14-pin connector on your Multimatic 220 AC/DC lets you choose your control for a customized experience, whether it’s a foot control, fingertip control, or wireless foot control.
- Wide range of TIG adjustability: AC balance adjusts from 60 – 80%; AC frequency adjusts from 60 –150 Hz; DC Pulse adjusts from Off – 150 pulses per second (PPS); TIG Post-Flow adjusts from Auto – 25 seconds (accessible through service menu screen 12); Lift-Arc and high-frequency starts;Tungsten size selection
- Processes: Flux Cored (FCAW), TIG DC (GTAW-DC), MIG (GMAW), Stick (SMAW)
- MIG welds 24 ga. to 3/8" mild steel
- MIG welds 18 ga. to 3/8" aluminum (with optional spoolgun MEM-300371 or MEM-301272)
- AC/DC TIG welds 24 ga. to 1/4" steel
- DC Stick welds 16 ga. to 3/8" steel
- Specifications:
- Product type: Multiprocess welder
- Manufacturer: Miller
- Model: Multimatic 220
- Input power:120V / 240V, 50/60 Hz, single phase
- Wire speed: 60-600 IPM (1.5-15.2 m/min)
- Maximum open circuit voltage: 46 VDC
- Height: 17.5"
- Width: 11.25"
- Depth: 21.5"
- Machine net weight: 56 lbs
- Miller True Blue Warranty

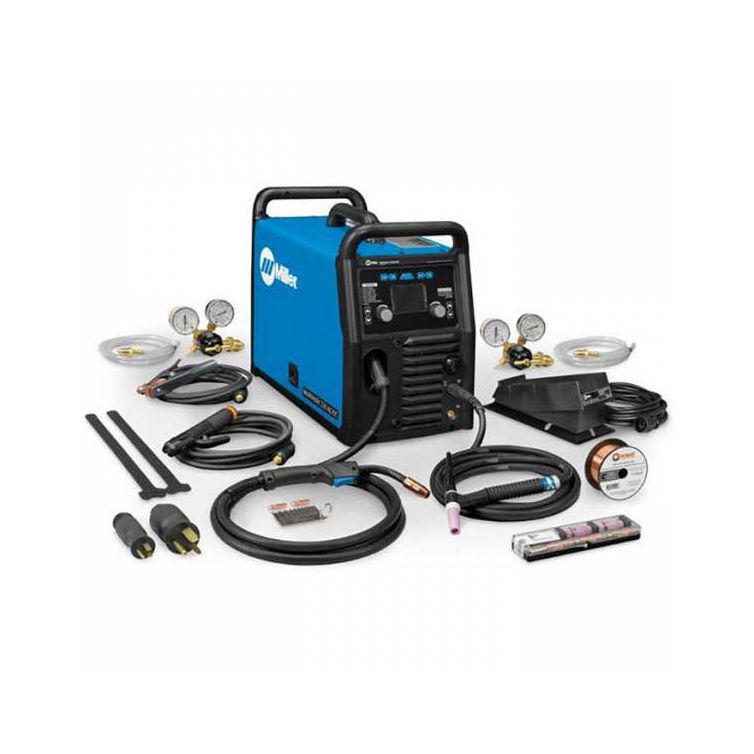

- Includes:
- Multimatic 220 power source (907757)
- 6.5' (2 m ) power cord with MVP plugs for 120 V and 240 V
- 10' (3 m) M-100 MIG gun and cable assembly
- 13' (4 m) cable electrode holder and 25 mm Dinse-style connector
- 12.5' (3.8 m) Weldcraft A-150 (WP-17) TIG torch with 25 mm Dinse-style connector
- RFCS-14 HD foot control with 20' (6 m) cord
- 10' (3 m) work cable with clamp and 25 mm Dinse-style connector
- Two flow gauge regulators and gas hoses for argon and AR/CO2 mix
- Hobart spool of .030" (0.8 mm) solid wire
- Two contact tips for .030" (0.8 mm) wire
- Quick Select drive roll for .024" (0.6 mm) or .030/.035" (0.8/0.9 mm) solid wire, and .030/.035" (0.8/0.9 mm) flux-cored wire
- AK2C TIG torch accessory kit
- Material thickness gauge (229895)
- Hook and loop cord wraps
- Shiedling gas and safety equipment not included
- Click PDF icon to download feature/ spec sheet
