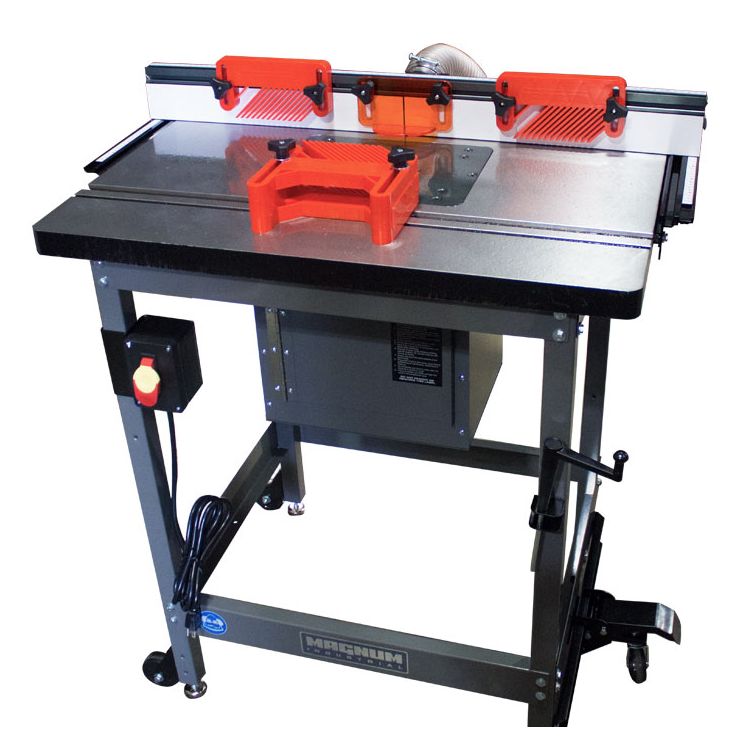

Magnum Industrial Deluxe Router Table Package

The Magnum Industrial MI-42140 Deluxe Router Table allows you to perform precision router and shaping projects where fine joinery and detail is critical. Repetitive accuracy is easy with this system. Combined with a sold cast iron table top and fine adjust fence system the MI-42140 package is a top seller

• Above table fine adjustment gives clear view of increments for precision work
• MI-42100 award winning router lift bushing less 4 post chain design is sold separately
• Cast-iron precision-ground table top for solid, stable performance
• Built-in dust kit makes dust control efficient and easy
• Includes safety featherboards to help provide a safe and vibration-free platform
• Includes reducer adapters MI-99400 (3-1/2") and MI-99401 (3-1/4") as standard equipment
• Retractable mobile base can be lowered on four solid feet for vibration-free work
• Dust collection connects to the router and the fence port to ensure full coverage
• On/Off switch can be moved to different positions for safe, easy access

Specifications

• Overall dimensions: 35-1/2" x 24" x 41" (902 x 609 x 1041mm)
• Table size: 24" x 32" x 1 1/4" (609 x 812 x 32 mm)
• Table height: 36-1/2" (927 mm)
• Fence size (each): 3" x 17-3/4" x 3/4" (76 x 451 x 19 mm)
• Max fence travel: 9" (229 mm)
• Dust outlet: 4" (102 mm)
• Distance between T-slot and spindle center:
  • 3/4":5-5/8” (143 mm)
  • 3/8": 7-3/16" (183 mm)
• Distance between spindle center to front edge of table: 12" (305 mm)
• T-Slot dimensions:
  • 3/4" x 3/8" (19 x 10 mm)
  • 3/8" x 1/4" (10 x 7 mm)
• Router insert plate: 9-1/4" x 11-3/4" (235 x 298 mm)
• Table opening sizes: 3-3/4" (95 mm) plate / 1-1/2" (38 mm) insert ring
• Weight: 185 lbs (84 kg)

Includes

• Stand
• Fence
• Cast table
• Adaptors and feather board accessories
• Dust collection box and kit

Sold Seperately

• MI-42100 Router Lift
