Magnum Industrial

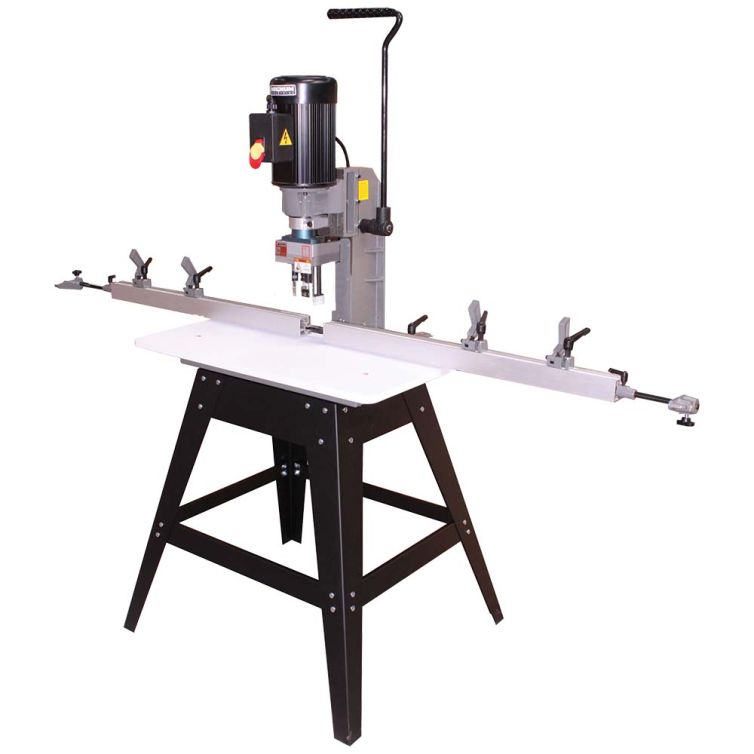

Magnum Industrial Blum-Style Hinge Boring Machine
Reg. $2,699.99 Special Price $2,499.95
In Stock Online
Super Special
SKU
MI-77450
Model#: 77-450
Details
Powerful, sturdy and efficient, the Magnum Industrial MI-77450 hinge boring machine saves you time when installing Blum-style hinges, drilling the 35 mm centre hole and both 8 mm screw holes in one stroke. Pre-drilling cabinet doors has never been easier!
- Powerful 1 HP motor drills through the toughest laminate and solid wood
- Long lever control for effortless action
- Precision work stops allow accurate repeat drilling on multiple work pieces
- Heavy-duty cast-iron construction meets the demands of professional cabinet manufacturers
- Extra-wide open steel stand provides stability and vibration-free operation
- Uses standard 10 mm shank chucks
- Includes one 35 mm carbide bit and two 8 mm carbide bits
- Â
- Specifications
- Motor: 1 HP, 110 V, 1 Phase, 15 Amps
- Carbide drill bits include: 1 x 35 mm, 2 x 8 mm
- Hinge type holder: Blum-style
- Collet size: 3/8" (10 mm)
- Spindle speed: 3,450 rpm
- Table size (l x w): 31-1/2" x 23-5/8" (800 x 600 mm)
- Table height from floor: 33-1/4" (845 mm)
- Maximum depth of stroke: 4-5/8" (120 mm)
- Maximum depth (bit to fence): 3-1/2" (88 mm)
- Fence (with extensions): 66-1/8" x 105-1/2" (1,680 mm x 2,680 mm)
- Maximum stock thickness: 5-1/2" (140 mm)
- Weight: 210 lbs (95 kg)
