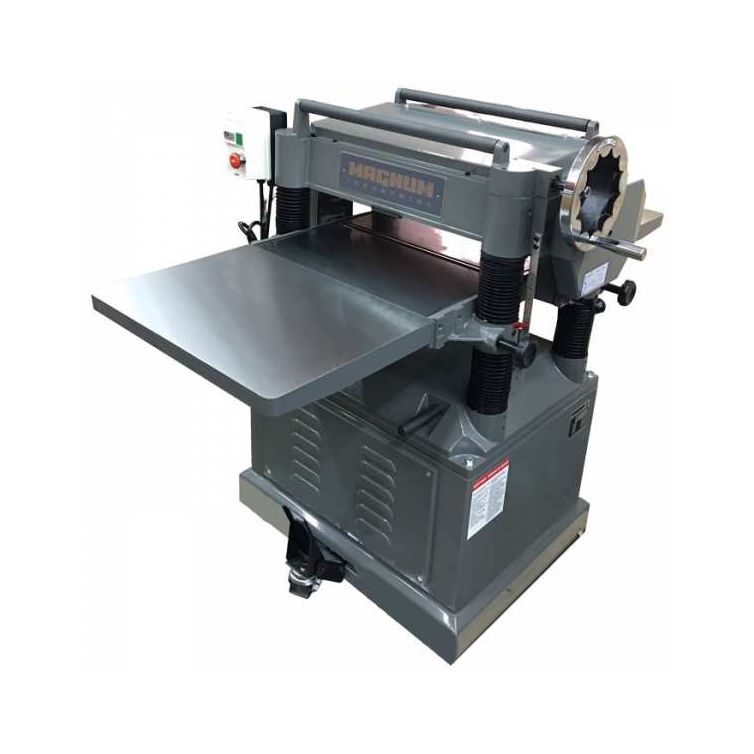

Magnum Industrial 20" Heavy-Duty Planer with Helical Cutterhead
Reg. $6,299.99 Special Price $5,799.95
In Stock Online
Super Special
SKU
MI-31450
Model#: 31-450
Details
The Magnum Industrial MI-31450 20” heavy-duty planer is an industry workhorse, made for busy shops that need a rugged production machine. The newly designed Magnum helical cutterhead delivers all the advantages of a standard helical head with several improvements: It limits lines and grain tear out; it doesn't require special torque setting tools; and its 58 reversible carbide inserts can handle almost any hardwood or softwood application.
- Powerful 5 hp motor accommodates continuous feeding, even with larger planks
- Magnum helical cutterhead with 58 two-sided carbide inserts minimizes tear out and lines
- Extra-long cast-iron wings support large workpieces and reduce snipe
- Top return rollers facilitate multiple passes on long pieces
- Four-post lock minimizes snipe marks on final pass
- Two feed speeds (16 and 20 LFM) deliver high-quality results on hardwood or softwood
- Complete one-piece stand provides stable, vibration-free operation and includes a built-in heavy-duty mobile base
- Magnetic switch protects against burnout and improves operator safety
- Specifications:
- Motor: 5 HP, 220 V, 1 Ph, 23.2 amps
- Inserts: 58 carbide two-sided inserts
- Cutterhead speed: 5,000 RPM
- Cutterhead diameter: 3-1/8" (80 mm)
- Maximum planing width: 20" (508 mm)
- Minimum thickness: 8" (202 mm)
- Minimum thickness: 1/8" (3 mm)
- Minimum stock length: 6-3/4" (172 mm)
- Maximum cutting depth: 1/8" (3 mm)
- Feed speed: 16 LFM and 20 LFM (4.87 and 6.1 metres per minute)
- Table size: 25-9/16" x 20" (650 x 508 mm)
- Extension sizes: (2) 15" x 21-1/4" (380 x 538 mm)
- Total work surface: 55" x 20" (1,437 x 506 mm)
- Dust port: 5" (127 mm)
- Weight: 893 lbs (406 kg)
