Magnum Industrial 20" Heavy-Duty 19A Planer - 3 Phase

Reg. $8,899.99 Special Price $8,299.95
Limited Qty Online
SKU
MI-31553
Model#: MI-31553
Check Other Stores

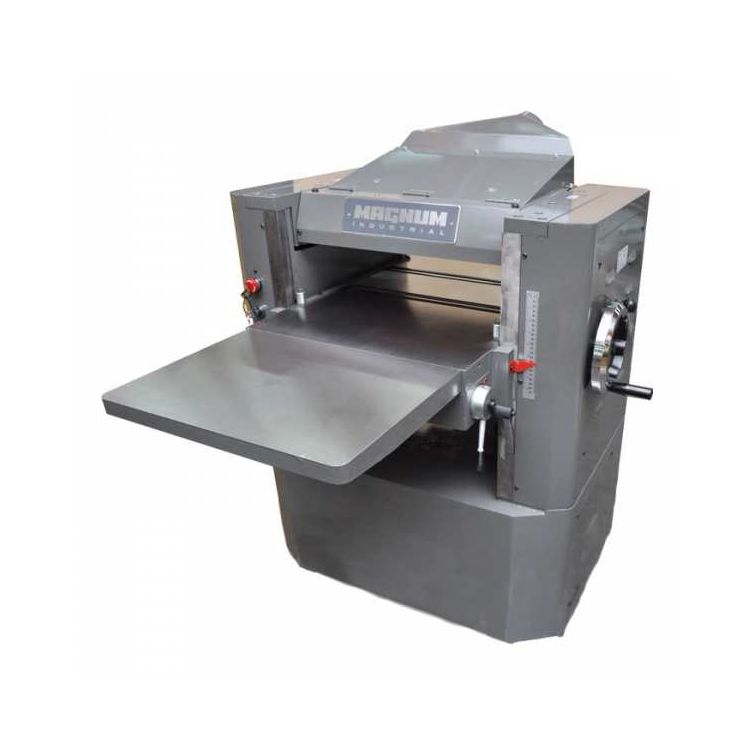

Magnum Industrial 20" Heavy-Duty 19A Planer - 3 Phase

Updated for 2018, the Magnum Industrial 20" heavy-duty planer features a European inspired design and three motor options to meets the needs of any planing application, from schools and home workshops to professional production shops. The Magnum helical cutterhead is easy to set up and delivers all the advantages of a standard helical head plus several improvements.

spec sheet manual.pdf download manual.pdf

  • Runs quieter and limits lines and grain tear out
  • Doesn’t require special torque setting tools
  • Can handle almost any hardwood or softwood application
  • Accommodates continuous feeding, even with larger planks
  • Sectional infeed rollers allow for staggered feeding of smaller pieces without kickback
  • Solid cast-iron extension wings add stability and reduce snipe when planing larger planks
  • Magnum helical cutterhead with 58 two-sided carbide inserts minimizes tear out and lines
  • Cutterhead housing features built-in sound baffles to reduce operating noise
  • Two feed speeds (22 & 28 LFM) deliver high-quality results on hardwood or softwood
  • Complete one-piece stand provides stable, vibration-free operation
  • Angled dust hood keeps collector hose out of the way
  • Magnetic switch protects against burnout and improves operator safety
  •
  • Specifications:
  • Motor: 7.5 HP, 220 V, 3 PH, 19A
  • Inserts: 58 Reversible Carbide
  • Cutterhead speed: 4,500 RPM
  • Cutterhead diameter: 3 3/4” (97 mm)
  • Maximum planing width: 20” (508 mm)
  • Maximum thickness: 8” (204 mm)
  • Minimum thickness: 3/16” (5mm)
  • Minimum stock length: 8 1/4” (210 mm)
  • Max. cutting depth: (full width) 1/8” (3 mm)
  • Max. cutting depth: (narrow boards) 1/4” (6 mm)
  • Feed speed: 22 & 28 LFM
  • Table size: 55” x 20” (1,437 x 508 mm)
  • Dust ports: 5” (127 mm)
  • Weight: 1,397 lbs (635 kg)
