Magnum Industrial 2 HP Dust Collector

Reg. $699.99 Special Price $599.00
In Stock Online
Flyer Sale
SKU
MI-11300
Model#: 11-300
Check Other Stores

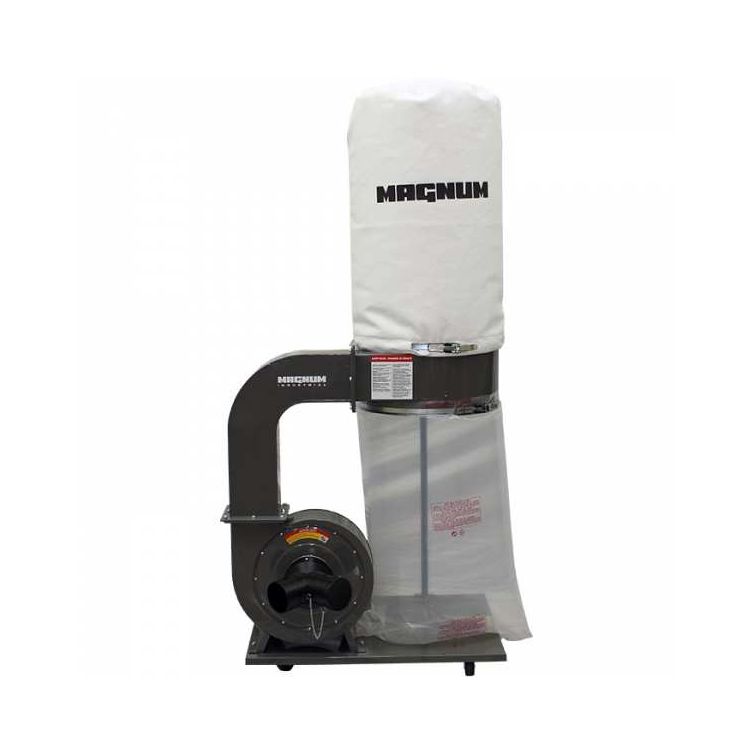

Magnum Industrial 2 HP Dust Collector

With a fully enclosed 2 HP motor and double-plated aluminum impeller, the MI-11300 has the power and durability to serve as a central dust collector for a medium-sized production shop.

spec sheet manual.pdf download manual.pdf

  • One-piece anti-spark impeller reduces fire risk
  • Rugged double-plated aluminum impeller can handle larger chunks of wood
  • Impeller shaft designed with high-quality bearings for continuous duty
  • Fully enclosed continuous-duty 220 volt 2 hp motor draws 9 amps
  • Metal cowling connects blower to bag to increase efficiency and lower noise levels
  • High-quality double-stitched 2 micron filter bag traps extra-fine dust from particle board, MDF, cedar and other woods, and most plastics
  • Filter bag is washable for easy maintenance
  • Clear plastic bottom bag makes keeping tabs on dust levels simple
  • Quick-release metal straps secure bags and allow quick bag changes
  • Built-in swivel-style casters deliver excellent mobility
  • Safety switch with key provides added security
  • Specifications:
  • Motor: 2 HP, 220 V, 1 Ph, 9 amps
  • Inlet diameter: 2 x 4” (102 mm) or 1 x 6" (152 mm)
  • Airflow capacity: 1,600 cfm
  • Impeller diameter: 12-3/4” (323 mm)
  • Sound level: 80 to 90 dBA
  • Bag diameter: 20" (508 mm)
  • Bag capacity: 42 gallons (190.9 litres)
  • Static pressure (without bag): 12” of water
  • Overall dimensions (L x W x H): 39-3/8"x 31-1/2"x 74-3/4"
  • Weight: 132 lbs (60 kg)
