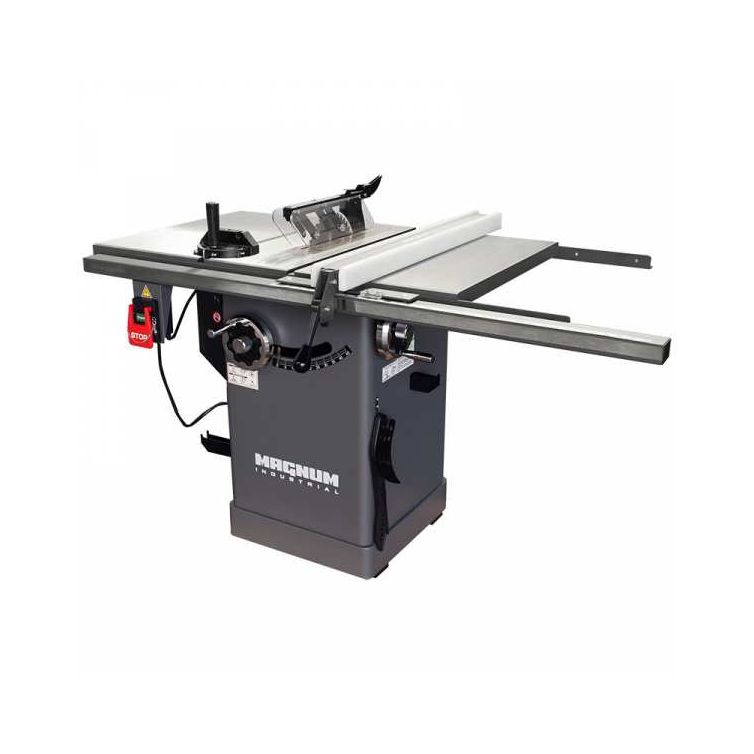

Magnum Industrial 10" 2 HP Cabinet Saw

With new upgrades for 2020, including overload protection, additional Teflon fence pads and improved, silicone-coated guides, the MI-51100 is a true left-tilt cabinet saw made for professional shops and serious woodworking enthusiasts. It's equipped with base-mounted trunnions for vibration-free operation and easy fine-tuning, along with a deluxe European-style self-aligning, smooth-operating T-fence. Driving the 10" blade is a powerful 2 HP motor that operates on either 220 or 110 volts.*

MI-51100
MI-51100A
MI-51100
MI-51100A

Features

• 2 HP cast-iron motor is fully enclosed to keep out dust and debris—Now with overload protection!
• Self-aligning T-square fence reduces binding—Now with additional Teflon pads for smoother action!
• Quick-change fence faces save time and improve efficiency
• Silicone-coated trunnion guides make raising and lowering the blade as smooth as ever
• Forged one-piece arbor guarantees minimal saw runout
• Blade changes are safe and easy with extra-large table insert and built-in arbor lock
• Upgraded dust collection design is super efficient
• Jointless serpentine drive belt delivers smooth, reliable power transfer
• Safety features include knee-knock Off switch, see-thru blade guard with anti-kickback features and removable riving knife

Optional Accessories

• MI-99005 Tenoning Jig
• MI-99511 Zero Clearance Insert

Specifications

• Motor: 2 HP, 115V / 230V, 19 / 9.5 amps
• Blade diameter: 10" (254 mm)
• Arbor diameter: 5/8" (16 mm)
• Arbor speed: 4,000 RPM
• Maximum cutting depth at 45°: 2-1/4" (54 mm)
• Maximum cutting depth at 90°: 3" (77 mm)
• Maximum rip to left of blade: 8" (203 mm)
• Maximum rip to right of blade: 30" (762 mm)
• Maximum dado cut: 13/16" (21 mm)
• Dust port diameter: 4" (102 mm)
• Table height: 36" (914 mm)
• Table size: 44" x 27" (1,118 mm x 686 mm)
• Base dimensions: 20" x 20" (508 mm x 508 mm)
• Weight: 330 lbs (150 kg)

*Motor is prewired for 220 volts. To convert to 115 volts, please order part# P-MI-51100-13/125

Product sheet for 2016-2019 version of MI-51100
