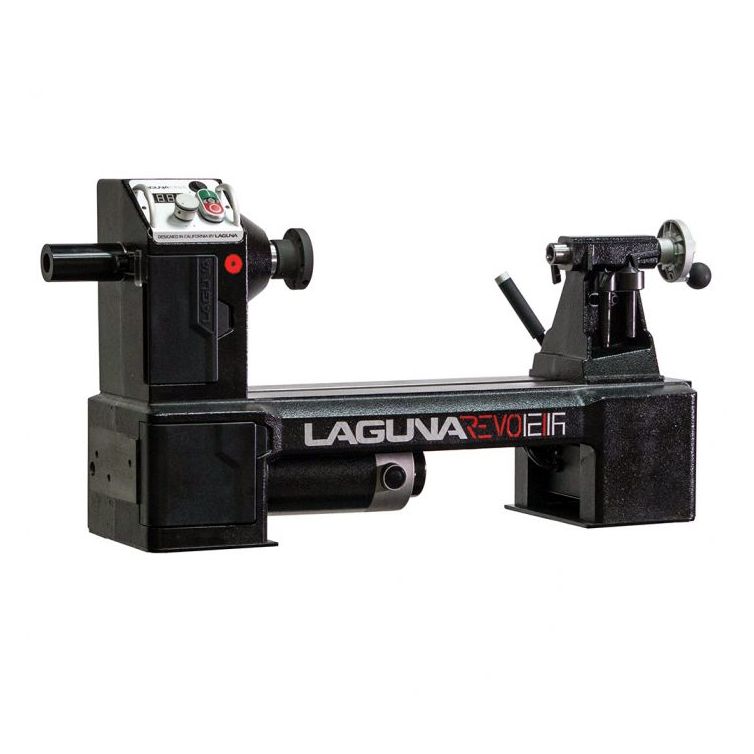

Laguna REVO 1216 Midi-Lathe
Details
The definitive midi-lathe, Laguna’s REVO 12|16 encapsulates the prestige of Laguna in a small package. It features a Pulse Width Modulation (PMW) system that maintains consistent torque at any speed; easy, one-step cam-action belt changes; and a luxury banjo with a 45 degree chamfered edge.
The 1216 controls its 1 HP DC motor using Pulse Width Modulation (PWM), so it can run as slow as 50 rpm and still deliver full torque. A problem with some DC motor controls is torque loss at low speeds, and many MIDI lathes feature a low speed of 250 RPM or higher. This is because cost-effective controllers introduce resistance into the voltage to limit the power, which reduces the speed but also reduces the torque at the same rate. PWM delivers full torque across the entire speed range. This allows for tremendous torque at low speeds which is helpful when roughing and precision work. This also allows for outboard turning up to a 16" bowl on a mid-sized lathe.
- Pulse Width Modulation delivers full torque at any speed
- Cam-lever with dial-in knob makes it easy to change pullets and move between high, medium and low (650–3500, 325–1750 and 50–525 rpm)
- Rotates in forward and reverse
- Magnetic belt cover door
- Bright digital display
- Includes face plate, drive centre (MT2), live center (MT2), centre knock-out rod, face plate wrench
Specifications:
- Motor: 1 HP DC permanent magnet motor
- Controller: Pulse width modulation (PWM)
- Electrical requirements: 110V, 1PH, 60HZ
- Recommended breaker size: 110V – 15 AMP
- Speed range (High / Medium / Low): 650–3500 / 325–1750 / 50–525 rpm
- Distance between centers: 15.5"
- Swing over bed: 12-1/2"
- Swing over banjo: 9-1/2"
- Maximum outboard swing: 16"
- Spindle bore: 3/8"
- Spindle taper: MT2
- Spindle thread: 1" x 8 TPI (both ends)
- Front bearing: 6006LLU
- Rear bearing: 6005LLU
- Indexing: 24 positions with lock
- Drive belt: Poly-V, 6 groove drive belt
- Tail stock quill travel: 2-1/2"
- Tail stock taper: MT2
- Bed length: 29.4"
- Tool rest length 6"
- Tool rest post diameter: 1"
- Faceplate diameter: 3"
- Floor to bed height 6.7" (no pads)
- Floor to spindle center: 13" (no pads)
- Dimensions (l x w x h): 29.4" x 8.9" x 17.4"
- Net weight: 118 lbs
