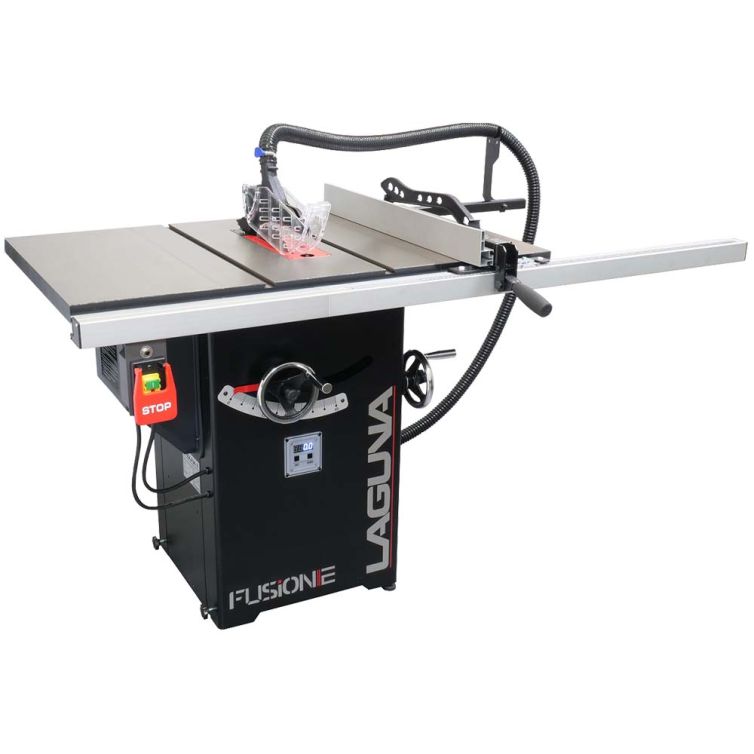

Laguna F2 Fusion Table Saw

The new Laguna Fusion line was developed for demanding woodworkers. Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms.

This model is equipped with a precision fence feature the Hi/Low aluminum extrusion known from European saws. The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on the LEFT side is provided only to make the ON/OFF switch position. Permanently lubricated bearings & Acme screws are part of the internal DNA. Fusion 2 is the true successor to the original Fusion Table Saw. The task was simple: make a saw that was more refined, more precise, and cleaner.

• 1.75HP TEFC Motor
• 110V, Single-Phase, 60Hz Power Requirement
• Fusion Dust Collection System
• Cabinet Mounted Design
• Included Tools & Integrated Tool Storage
• Included 10 x 40T Carbide-Tipped Blade

DOWNLOAD » MTSF236110175-0130 User Manual

Specifications

• Product: tablesaw
• Manufacturer: Laguna
• Model: MTSF236110175-0130
• Dust Port Size: 4"
• Blade Guard Dust Port Size: 1-1/2"
• Table Saw Type: Cabinet
• Maximum Blade Diameter: 10"
• Arbor Size: 5/8"
• Arbor Speed: 4,500 RPM
• Maximum Width of Dado: 3/4"
• Blade Tilt Direction: Left
• Max Blade Tilt: 45°
• Max Depth of Cut at 90°: 3-1/8"
• Max Depth of Cut at 45°: 2-1/8"
• Floor to Table Height: 35"
• Table Size with Extension Wing Width: 44"
• Table Size with Extension Wing Depth: 27"
• Fence Length: 33-7/16"
• Fence Width: 9-13/16"
• Fence Height: 3"
• Fence Rail Length: 66-9/16"
• Fence Rail Width: 3"
• Fence Rail Height: 2"
• Overall Length: 66-13/16"
• Overall Depth: 39-3/8"
• Overall Height: 42-7/8"
• Net Weight: 276 lbs
