Spindle depth fine feed control with micro downfeed dial
Adjustable depth stop
Rubber chip guards on ways
Chuck guard
Emergency stop button
Comes with 1/2” chuck, chuck key, R8-JT#33 chuck arbor, chuck guard, 2 T-slot nuts, oil bottle, adjustment wrenches and hex keys

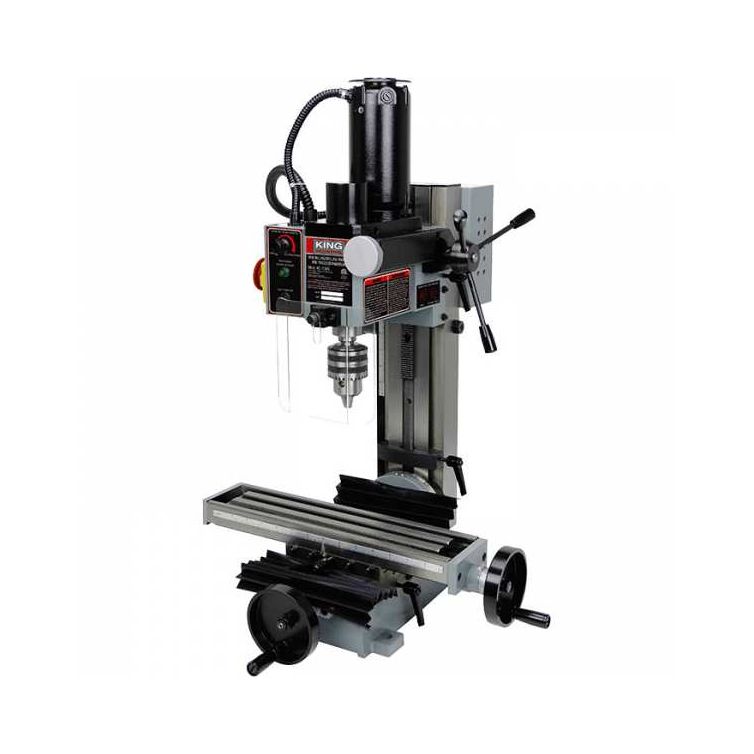

SPECIFICATIONS
1/2" Drilling capacity in cast iron or steel
11-1/4" max. distance spindle nose to table
12-3/4" Swing
R8 Spindle taper
7" Spindle stroke
2 Variable speeds (0-1,100 / 0-2,500) RPM
1-1/8” Face mill capacity
5/8" End mill capacity
8-1/2" Max. longitudinal travel
4" Cross travel
3-5/8” x 15-3/4” Working area of table
7/16” T-slot on table
4.5A, 6,000 RPM motor
120V, 1 phase, 60 Hz
