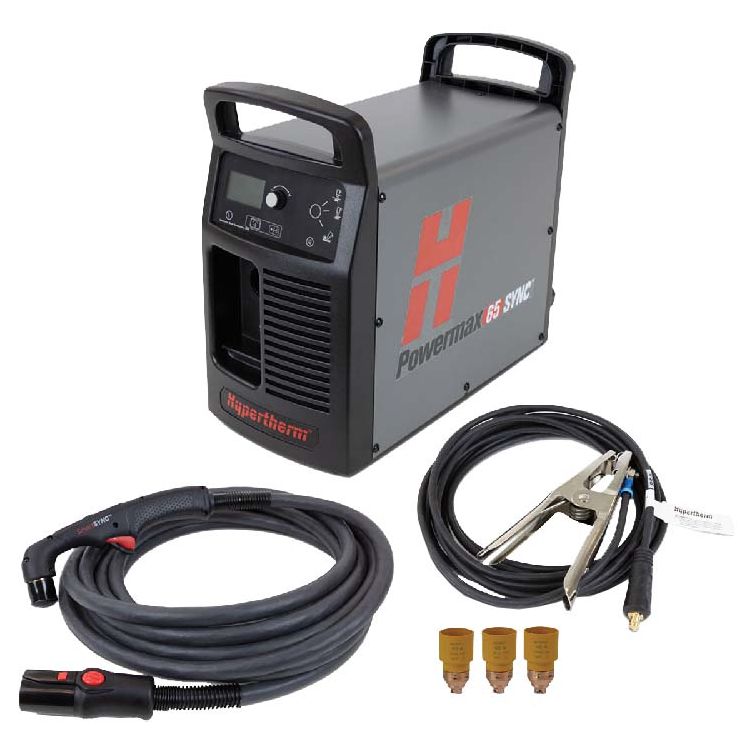

Hypertherm Powermax65 SYNC Hand Cutting Plasma System with CPC Port

Tackle a wide range of jobs with easily interchangeable torch styles and application specific cartridges for various types of cutting and gouging. Optimized cartridge consumable design provides up to twice the life for hand cutting and improved quality over life in mechanized setups compared to standard consumables. Time-saving handheld torch controls allow the operator to adjust the amperage on the fly, change cartridges and applications without returning to the power supply. SmartSYNC torches are engineered for rugged, industrial environments. SpringStart technology ensures consistent starting and a more reliable torch. Industry-leading reliability reduces production downtime. Simplified system operation minimizes the time and costs spent on training and troubleshooting. Reductions to downtime during consumable change-outs and elimination of costs associated with premature disposal of consumable parts. Cartridge usage data provides valuable insights for improving cutting operations and consumable inventory management.

Specifications

• Product: plasma cutter
• Manufacturer: Hypertherm
• Model: 083345
• Input voltages:
  • 200-480 V, 1-ph, 50/60 Hz
  • 200-600 V, 3-ph, 50/60 Hz
• Kilowatt output: 9kW
• Input current:
  • 200/208/240/480 V, 1-ph 52/50/44/22 A @ 9kW
  • 200/208/240/480/600 V, 3-ph 32/31/27/13/13 A @ 9kW
• Output current: 20-65 A
• Rated output voltage: 139 VDC
• Duty cycle @ 104°F:
  • 50% @ 65 A, 230-600 V, 1/3-ph
  • 40% @ 65 A, 200-208 V, 1/3-ph
  • 100% @ 46 A, 230-600 V, 1/3-ph
• Open circuit voltage (OCV): 295 VDC
• Dimensions with handles: 19" x 9.2" x 17"
• Weight with 25' torch: 61 lbs
• Gas supply: Clean, dry, oil-free air or nitrogen
• Optimum inlet gass pressure: 110-120 PSI
• Minimum inlet gas pressure: 75 PSI
• Recommended inlet gas flow rate:
  • Cutting: 450 scfh, 7.5 scfm @ 85 PSI
  • Gouging: 450 scfh, 7.5 scfm @ 70 PSI
• Input power cable length: 10'
• Power supply type: Inverter - IGBT
• Engine drive requirement: 15kW for full 65 A output
• Certifications: CSA
