Hypertherm

Hypertherm Powermax 45XP

Reg. $3,899.99 Special Price $3,199.97
Available in Select Stores Only
Clearance
SKU
HYP-088112
Model#: 088112
Available In Store Only
Check Other Stores

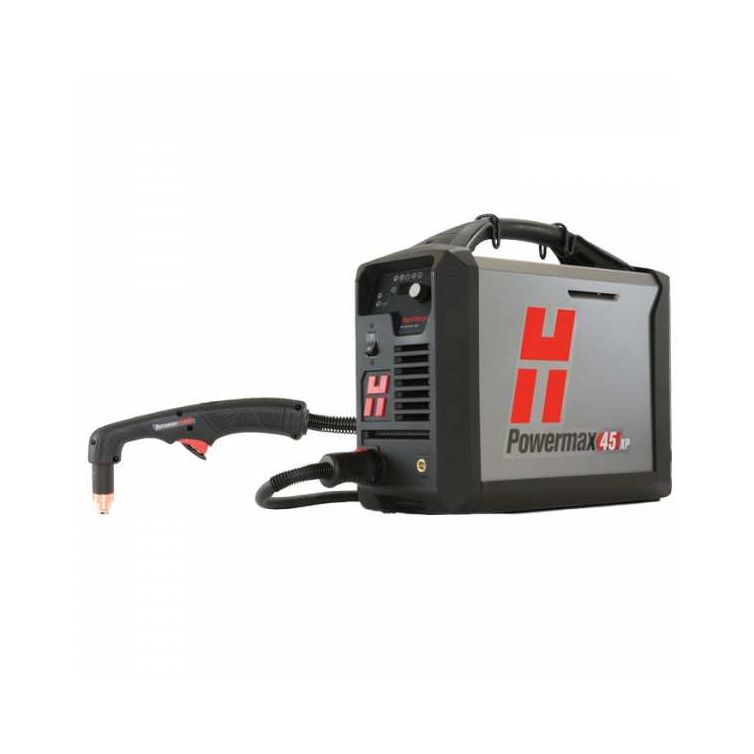

The Powermax45 XP delivers increased cut capacity-- up to 16 mm (5/8") metal-- as well as faster cut speeds, and automatic gas adjustment for quick, simple setup and operation. New Duramax Lock torches support handheld and mechanized cutting of a wider range of metal thicknesses, along with enhanced gouging and marking capabilities. This cutter's unique torch shield electronically isolates the nozzle from the workpiece to eliminate double arcing. This means you can drag the torch along the workpiece for steadier, more accurate cuts without a stand-off.

  • Small size and light weight provide exceptional portability for a 16 mm (5/8") rated cutting system
  • Patented drag-cutting technology makes the Powermax45 XP easy to use – even for first-time operators
  • Smart Sense technology ensures that air pressure is always correctly set
  • A wide range of torch styles to choose from for both handheld and automated processes
  • Extensive array of application capabilities via specialty consumables for fine feature cutting, extended reach cutting, gouging, precision gouging, and marking
  • Specifications:
  • Input: 200-240V
  • 100% duty cycle @ 32A
  • 50% duty cycle @ 45A
  • Rated 5/8" @ 20 IPM
  • Rated 7/8" @ 10 IPM
  • Severs up to 1 1/8" @ 5 IPM
  • Machine weight with 20' torch 33 lbs
  • Click PDF icon to download feature / spec sheet HYP-088112
