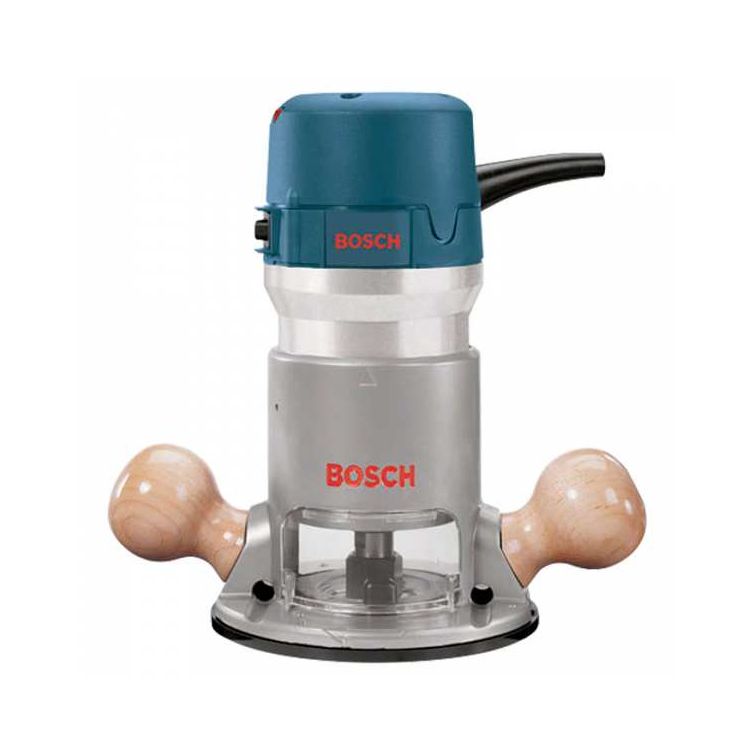

Bosch 2.25 HP Electronic Fixed-Base Router

The Bosch 1617EVS 2.25 HP Electronic Fixed-Base Router has the power to get results, with a 12 Amp motor and adjustable speed settings. The variable-speed dial allows the operator to set the optimal speed. Constant Response Circuitry, the router will maintain a constant speed throughout the cut, resulting in clean, accurate product. Users can glide along the intended cutline using dovetail fixtures, templates, jigs and other guidance devices. The Bosch Precision Centering Design allows the bit to be centered with the sub-base or optional template guides.

• 12 Amp router motor - combines ample power with adjustable speed settings, allowing users to glide along cutlines
• Constant Response circuitry stabilizes start-up torque
• Adjustable speed dial (8,000-25,000 RPM)
• Microfine bit-depth adjustment
• Rounded hardwood handles maximize user control
• Right or left switch location - for user preference and consistency (motor does not rotate during depth adjustment)
• Threaded three-hole base pattern
• Dust-sealed power switch
• One-piece armature shaft
• 2" sub-base opening
• Fixed base has threaded holes for mounting to router table positioned in common 3-hole pattern
• Double insulated
• Power switch - now includes dust-sealed power switch
• Now includes RA1161 fixed-base with system for adjusting bit height from above a router table
• Compatible with optional RA1129 Template Guide Adapter Set – for easy change of Bosch quick-release template guides and common threaded template guides; includes RA1126 Template Guide Adapter and RA1100 Interface for Threaded Template Guides

Specifications

• Product: fixed base router
• Manufacturer: Bosch
• Model: 1617EVS
• Amperage: 12A
• Base diameter: 6"
• Base opening: 3-3/4"
• Collet capacity: 1/4", 3/8", 1/2", 8 mm
• Fixed-base depth range: 1-5/8"
• Length: 6.0"
• No load RPM: 8,000-25,000
• Rating: 120V AC
• Subbase opening: 2"
• Voltage 120V
• Weight 8.3 lbs
• Width: 10.0"

Includes

• 1/4" S. R. Collet Chuck
• 1/2" S. R. Collet Chuck
• 16mm Shaft Wrench
• Collet Nut Wrench
• Chip Shield
• Fixed Base (RA1161)
• T-Handle Hex Height Adjustment Wrench
• Pack of 3 10-24 Screws for Table Mounting
