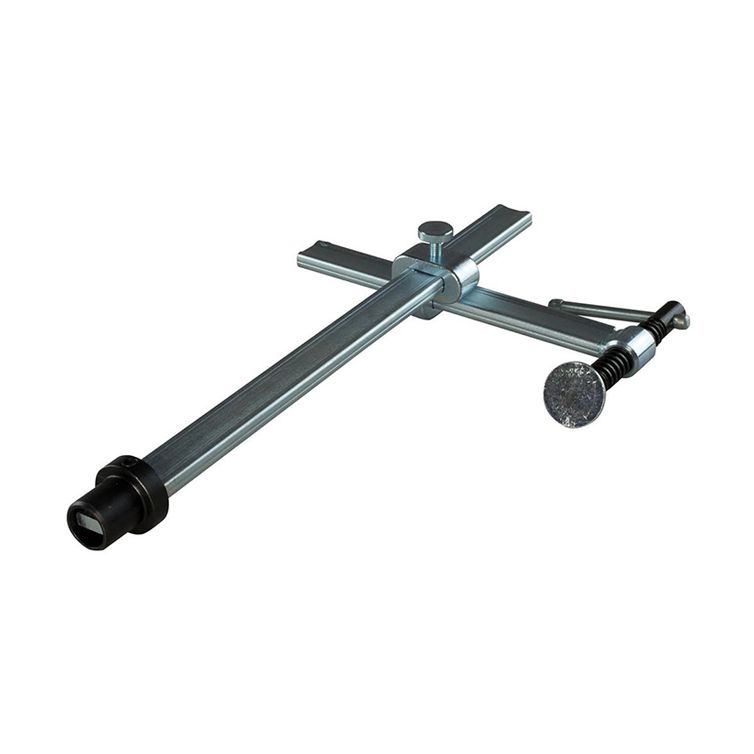

Bessey Variable Throat Depth T-Bar Welding Table Clamp - 16mm

With variable throat depth, this T-bar welding table clamp offers outstanding versatility and precise clamping. It can be set anywhere between 1.2" and 5.9", and features a tempered profiled rail and forged sliding arm for strength where you need it. Fits matrix tables with 16 mm holes.

Features

• Throat depth is infinitely adjustable between 1.2" and 5.9" (30 and 150 mm)
• Tempered profile and sliding arm for sprung and elastic clamping
• Smooth-running trapezoidal threaded spindle and tool-free pressure plate replacement
• For use on welding tables with 16 mm holes

Specifications

Throat depth: 1.2" to 5.9" (30 to 150 mm)
Opening: 8" (200 mm)
Rail: 0.87" x 0.33" (22 x 8.5 mm)
Hole size: 16 mm
Clamping force: 2,500 N
Weight: 2.3 lbs (1.04 kg)
